Veterianry ECG100G-VET Electrocardiograph

Veterianry ECG100G-VET Electrocardiograph

Introduction

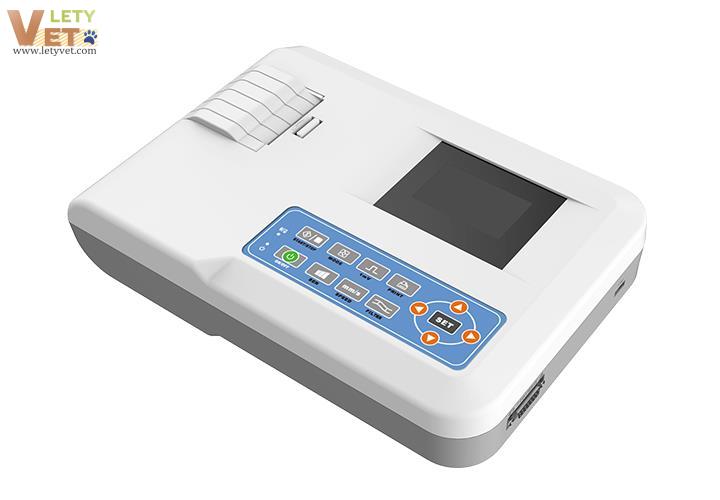

ECG100G-VET is a kind of single channel electrocardiograph, which features in printing ECG waveform by thermal printing system, prompting for

"Lead off" or "Lack of paper", multi-language interface, recording ECG waveform in AUTO/Manual mode, convenient to operate.

Function

· Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.

· Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.

· Real-time and continuously record clear and accurate ECG waveform and annotation character(including lead mark, sensitivity, paper speed and filter state, etc.).

· In AUTO mode, finish recording by pressing the button once, which improves work efficiency.

· Multi-language (Chinese, English, French, Italian, German, Spanish, Turkish, Russian and Kazakh) interface and report.

· In optimal DC state, up to 7-hour standby time, continuous print up to 4-hour, record up to 150 pieces of ECG waveform.
